Pregy SL360/2M100 - 4 PS BA15 - MW/80 + 80

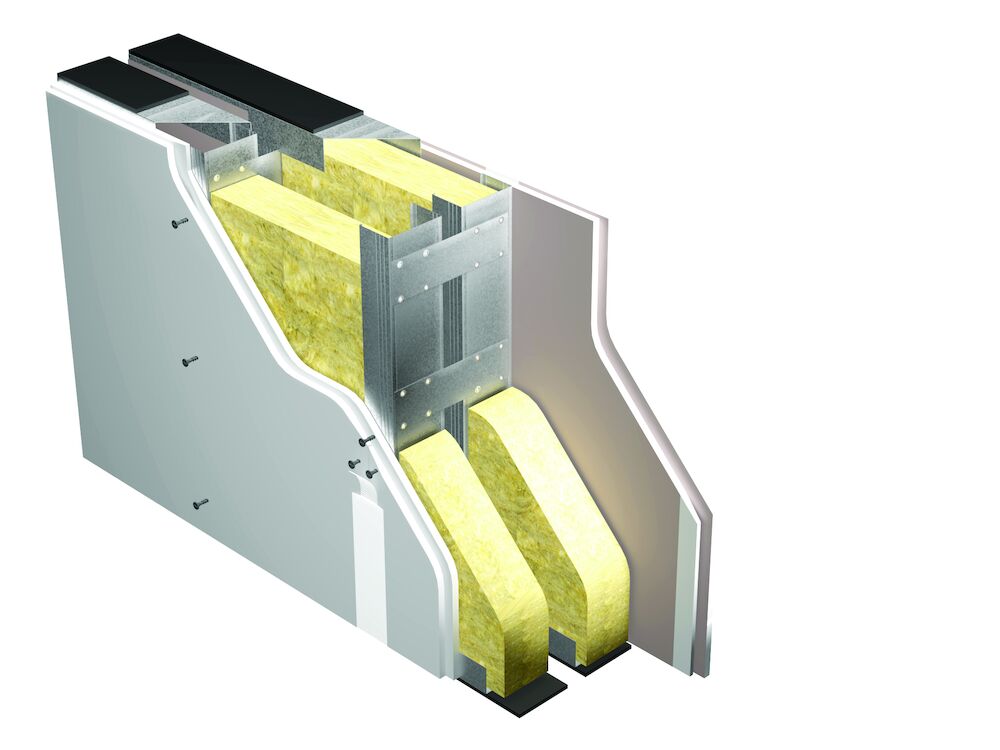

360 mm thick partition composed by 2 x 15 mm thick PregyPlac BA15 on each side, fixed to galvanized steel frame made of double row of 40-100-40 mm horizontal U tracks and 47-99-50 mm vertical C studs connected one to each other with metal brackets. Mineral wool 80 + 80 mm thick in the cavity.

Pregy SL360/2M100 - 4 PS BA15 - MW/80 + 80

Further Information

Nominal thickness: 360 mm
Insulation type: Mineral wool
Insulation thickness: 160 mm
Fire reaction: A2-s1,d0
Maximum height: 11000 mm
Acoustic report: Acoustic simulation
Sound insulation: 58 dB
Performance: Large-sized

Applications:

  • High partitions
  • New buildings and renovations
