Pregy D160/M100 - 4 PS BA15

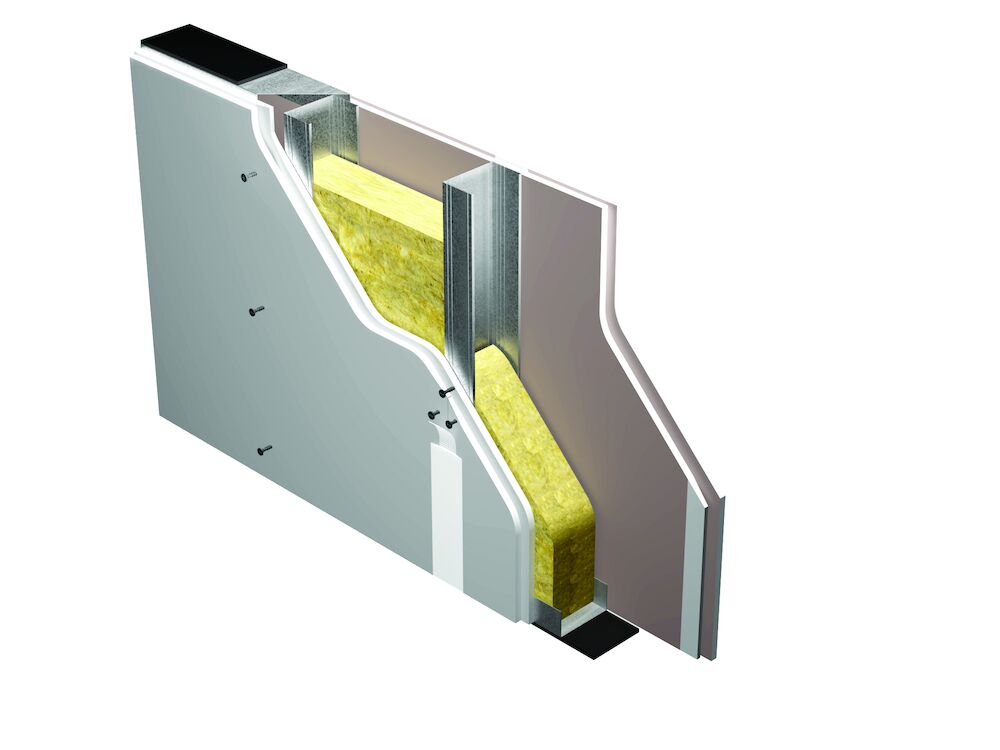

160 mm thick partition composed by 2 x 15 mm thick PregyPlac BA15 on each side, fixed to galvanized steel frame made of 40-100-40 mm horizontal U tracks and 47-99-50 mm vertical C studs.

Pregy D160/M100 - 4 PS BA15

Further Information

Nominal thickness: 160 mm
Fire report number: Efectis n. 06-V-052 + Ext. 06/2
Fire class: EI 60
Fire reaction: A2-s1,d0
Fire resistance: 60 min
Maximum height: 7500 mm
Acoustic report: Acoustic simulation
Sound insulation: 49 dB
Performance: Standard

Applications:

  • Interior partitions
  • New buildings and renovations
