Pregy D125/M75 - 4 PF BA13 - GW/70

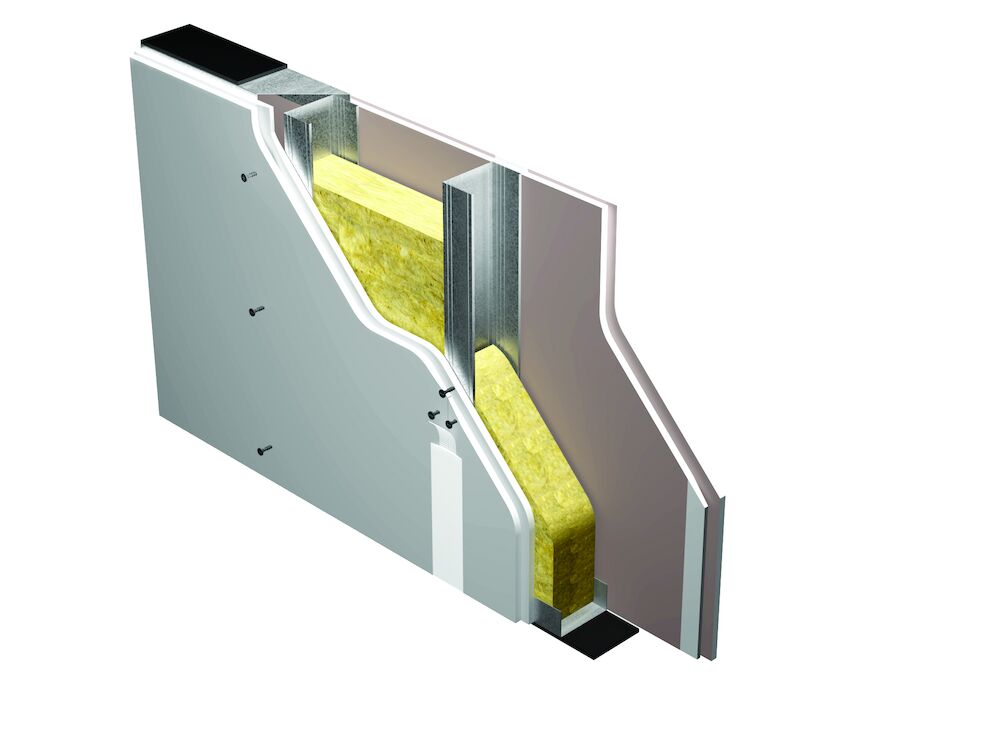

125 mm thick partition composed by 2 x 12,5 mm thick PregyFlam BA13 on each side, fixed to galvanized steel frame made of 40-75-40 mm horizontal U tracks and 47-74-50 mm vertical C studs. Glass wool 70 mm thick 12 kg/m³ in the cavity.According to fire classification report, glass wool with density between 12 and 17 kg/m³ and thickness between 30 and 70 mm is permitted as insulation.

Further Information

Nominal thickness: 125 mm
Insulation type: Glass wool
Insulation thickness: 70 mm
Insulation gross density: 12 kg/m³
Fire report number: Efectis n. 09-A-015
Fire class: EI 120
Fire reaction: A2-s1,d0
Fire resistance: 120 min
Maximum height: 5250 mm
Acoustic report: Acoustic simulation
Sound insulation: 58 dB
Performance: Fire

Applications:

  • Fire-rated interior partitions
  • New buildings and renovations
