Pregy D136/M100 - 2 PS BA18 - MW/80

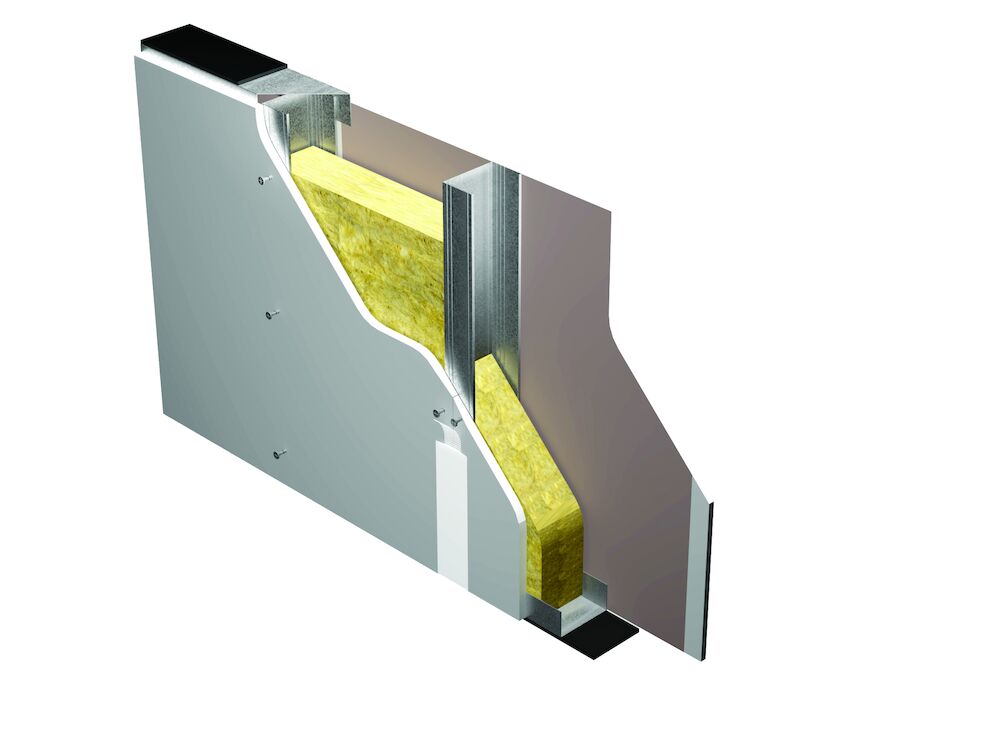

136 mm thick partition composed by 1 x 18 mm thick PregyPlac BA18 on each side, fixed to galvanized steel frame made of 40-100-40 mm horizontal U tracks and 47-99-50 mm vertical C studs. Mineral wool 80 mm thick in the cavity. According to fire classification report, glass wool with density less than 15 kg/m³ is permitted as insulation.

Further Information
Thickness: 136 mm
Insulation Type: Mineral wool
Insulation Thickness: 80 mm
Fire Report Number: Efectis n. 11-A-249
Fire Resistance Class: EI 60
Fire Reaction Class: A2-s1,d0
Fire Resistance: 60 min
Maximum Height: 5500 mm
Acoustic Report Number: Acoustic simulation
rw (Sound Insulation): 52 dB
Performance Category: Fire

Application:

  • Interior partitions
  • New buildings and renovations
