Pregy CW40/S4927 - 1 PF BA13

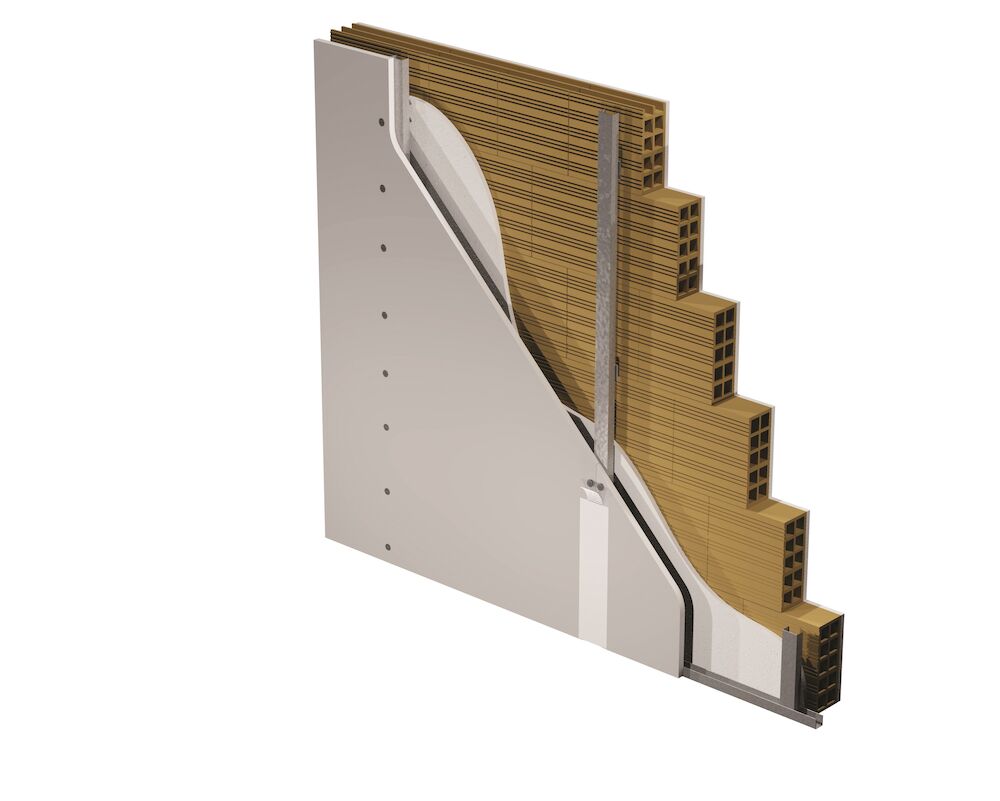

39,5 mm thick lining composed by 1 x 12,5 mm thick PregyFlam BA13, fixed to galvanized steel frame made of 28-28-28 mm horizontal U tracks and 27-49-27 mm S4927 vertical furring channel at 60 cm max spacing. According to fire test report, fire from the lining side only is allowed and maximum height is 4,00 m.

Further Information

Nominal thickness: 40 mm
Fire report number: IG n. 305030/3540 FR
Fire reaction: A2-s1,d0
Fire resistance: 120 min
Maximum height: 4000 mm
Support: 80 mm hollow brick wall plastered on both sides

Applications:

  • Fire resistance upgrading of existing walls
  • Renovations
