Pregy CW52/S4927 - 2 PS BA13 - MW/30

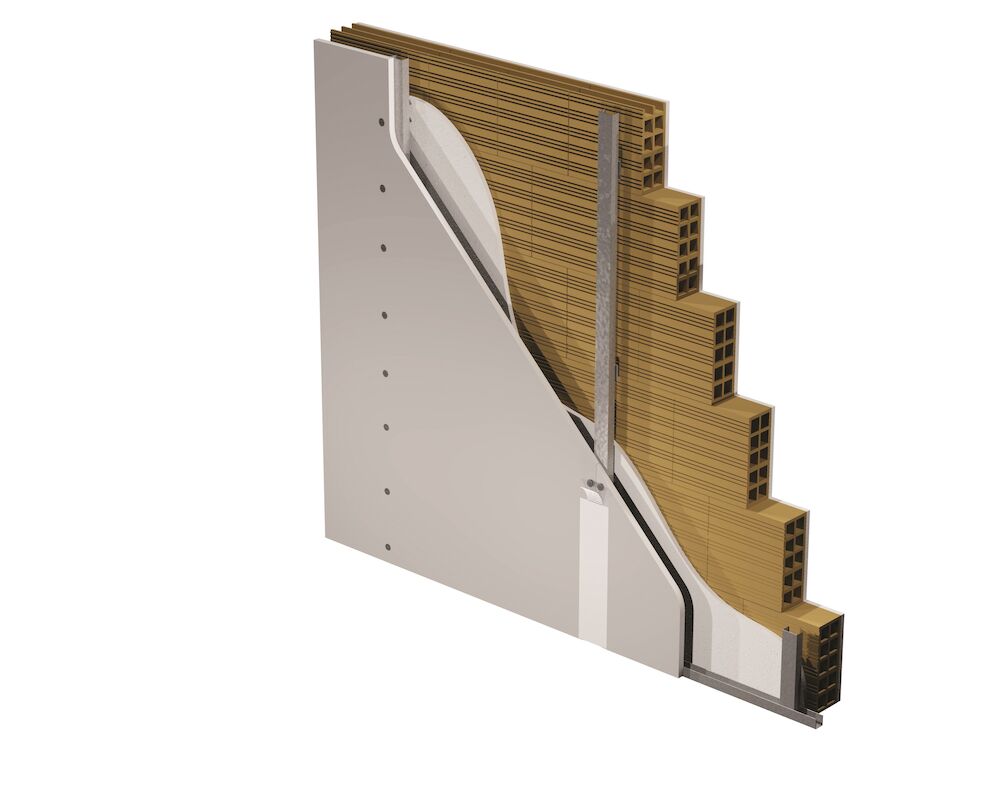

52 mm thick lining composed by 2 x 12,5 mm thick PregyPlac BA13, fixed to galvanized steel frame made of 28-28-28 mm horizontal U tracks and 27-49-27 mm S4927 vertical furring channel at 60 cm max spacing. Mineral wool in the cavity.

Pregy CW52/S4927 - 2 PS BA13 - MW/30

Further Information

Nominal thickness: 52 mm
Insulation type: Mineral wool
Insulation thickness: 30 mm
Acoustic report: Acoustic simulation
Fire reaction: A2-s1,d0
Maximum height: 6000 mm
Sound insulation: 57 dB
Support: Any kind

Applications:

  • Upgrading of thermal and acoustic performances of existing walls
  • Renovation
