Pregy CW113/M100 - 1 AQB BA13 - MW/80

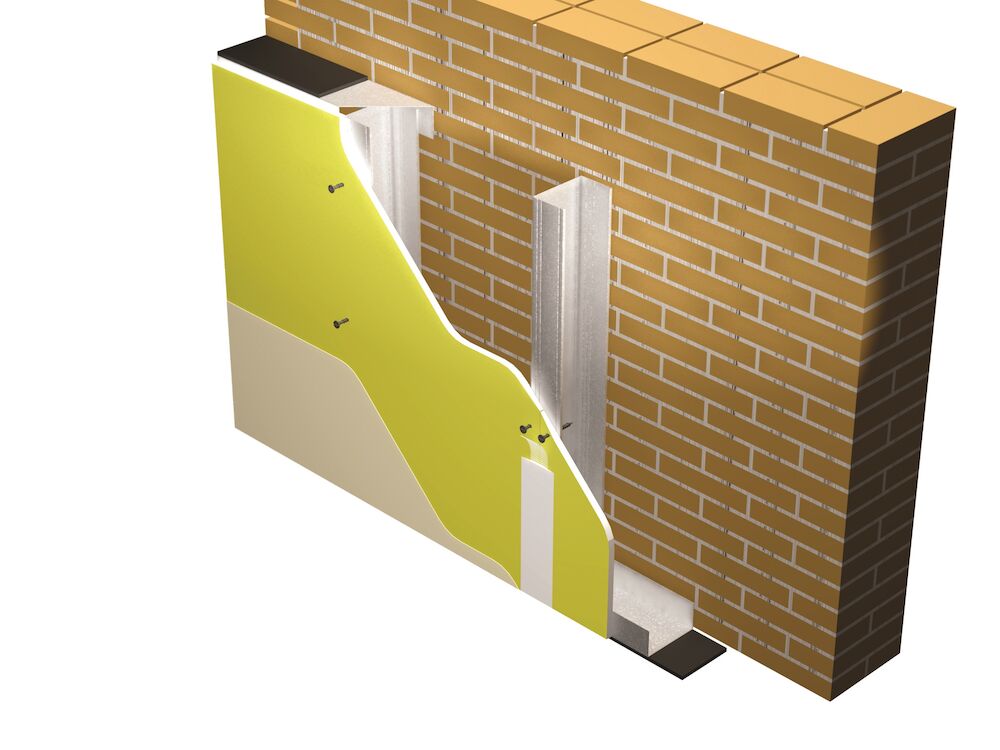

112,5 mm thick lining composed by 1 x 12,5 mm thick PregyAquaBoard BA13, fixed to galvanized steel frame made of 40-100-40 mm horizontal U tracks and 47-99-50 mm vertical C studs. Mineral wool (optional) in the cavity.

Pregy CW113/M100 - 1 AQB BA13 - MW/80

Further Information

Nominal thickness: 113 mm
Insulation type: Mineral wool
Insulation thickness: 80 mm
Maximum height: 5500 mm
Sound insulation: 63 dB
Support: Any kind / Stand alone
Performance: Water, Moisture

Applications:

  • Interior linings in bathrooms and extremely humid environments such as swimming pools and health spas
  • Upgrade of existing wall's themal and acoustic performances
  • New buildings and renovations
