Pregy CW125/M100 - 2 LaDura BA13 - MW/80

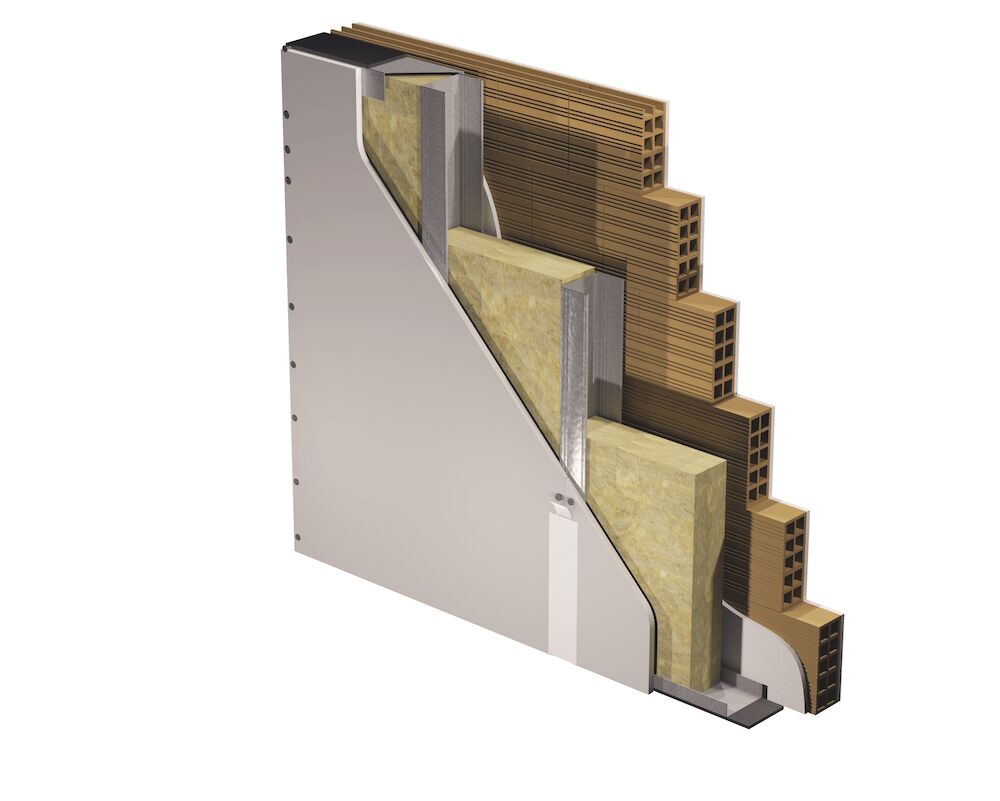

125 mm thick lining composed by 2 x 12,5 mm thick LaDura Plus BA13, fixed to galvanized steel frame made of 40-100-40 mm horizontal U tracks and 47-99-50 mm vertical C studs. Mineral wool (optional) in the cavity.

Pregy CW125/M100 - 2 LaDura BA13 - MW/80

Further Information

Nominal thickness: 125 mm
Insulation type: Mineral wool
Insulation thickness: 80 mm
Acoustic report: Acoustic simulation
Fire reaction: A2-s1,d0
Maximum height: 7200 mm
Sound insulation: 66 dB
Support: Any kind / Stand alone
Performance: Acoustic, Increased load capacity, Moisture, Mechanical strength, Impact & security

Applications:

  • Upgrading of thermal and acoustic performances of existing walls
  • Renovations
