Pregy CW63/M50 - 1 PH BA13 - MW/40

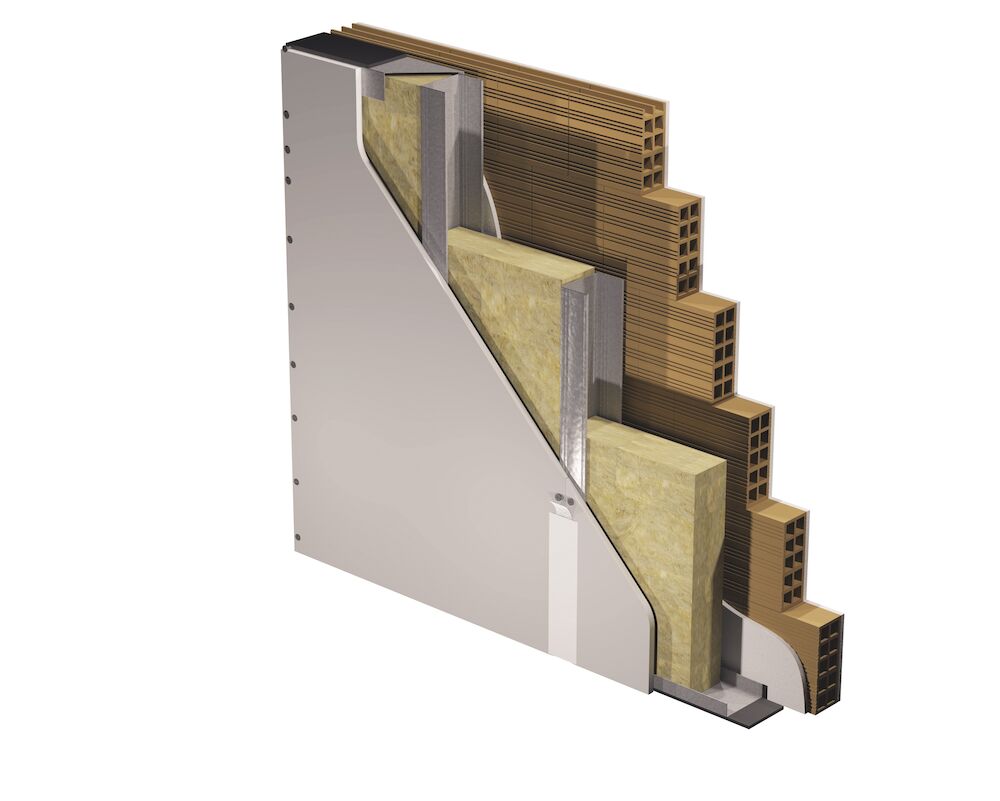

62,5 mm thick lining composed by 1 x 12,5 mm thick Pregydro H2 BA13, fixed to galvanized steel frame made of 40-50-40 mm horizontal U tracks and 47-49-50 mm vertical C studs. Mineral wool (optional) in the cavity.

Further Information
Nominal thickness: 63 mm
Insulation type: Mineral wool
Insulation thickness: 40 mm
Acoustic report: Acoustic simulation
Fire reaction: A2-s1,d0
Maximum height: 6000 mm
Sound insulation: 61 dB
Support: Any kind / Stand alone

Applications:

  • Upgrading of thermal and acoustic performances of existing walls
  • Renovations
