Pregy CSO 40/S6027 - 1 AQB BA13

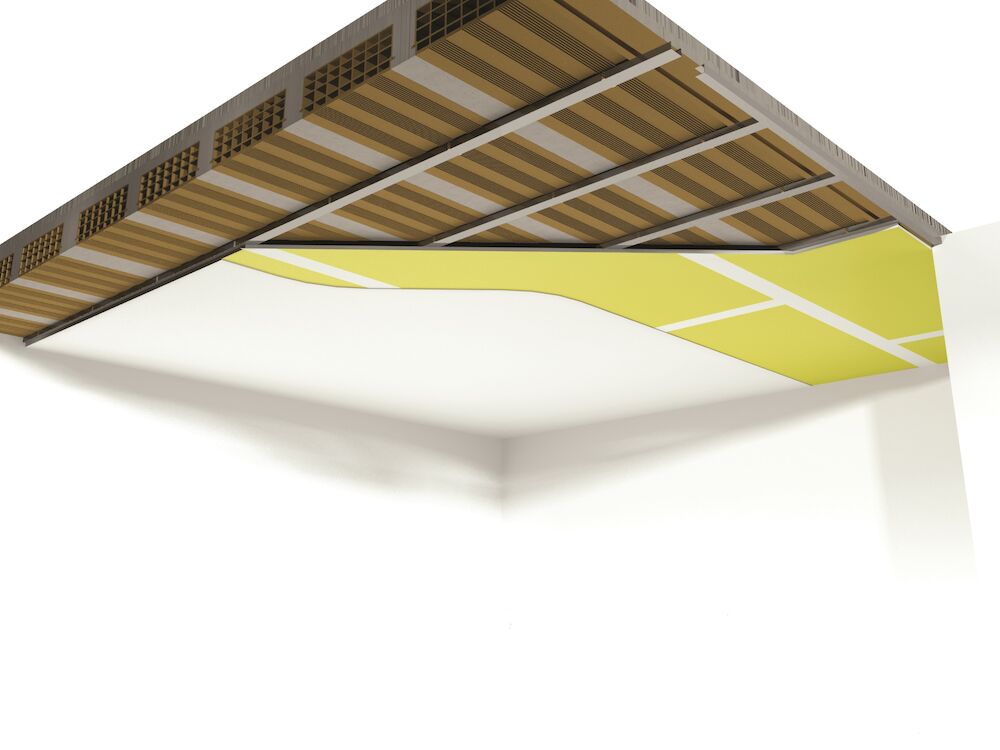

Single frame ceiling with 1 x 12,5 mm PregyAquaBoard BA13, fixed to galvanized steel frame made of 28-28-28 mm U tracks and 27-60-27 mm S6027 channel at 50 cm spacing with hangers at 120 cm. Mineral wool (Optional) in the cavity

Pregy CSO 40/S6027 - 1 AQB BA13

Further Information

Nominal thickness: 40 mm
Framing centres: 500 mm
Insulation type: Mineral wool
Maximum hanger span: 1200 mm
Fire reaction: A2-s1,d0
Performance: Moisture
Support: Any kind

Applications:

  • Suspended ceilings in bathrooms and extremely humid environments such as swimming pools and health spas
  • Upgrade of existing soffit's themal and acoustic performances
  • Used where services are required below the soffit
  • New buildings and renovations
