Pregy CDO 67/S4927 - 1 PF BA13

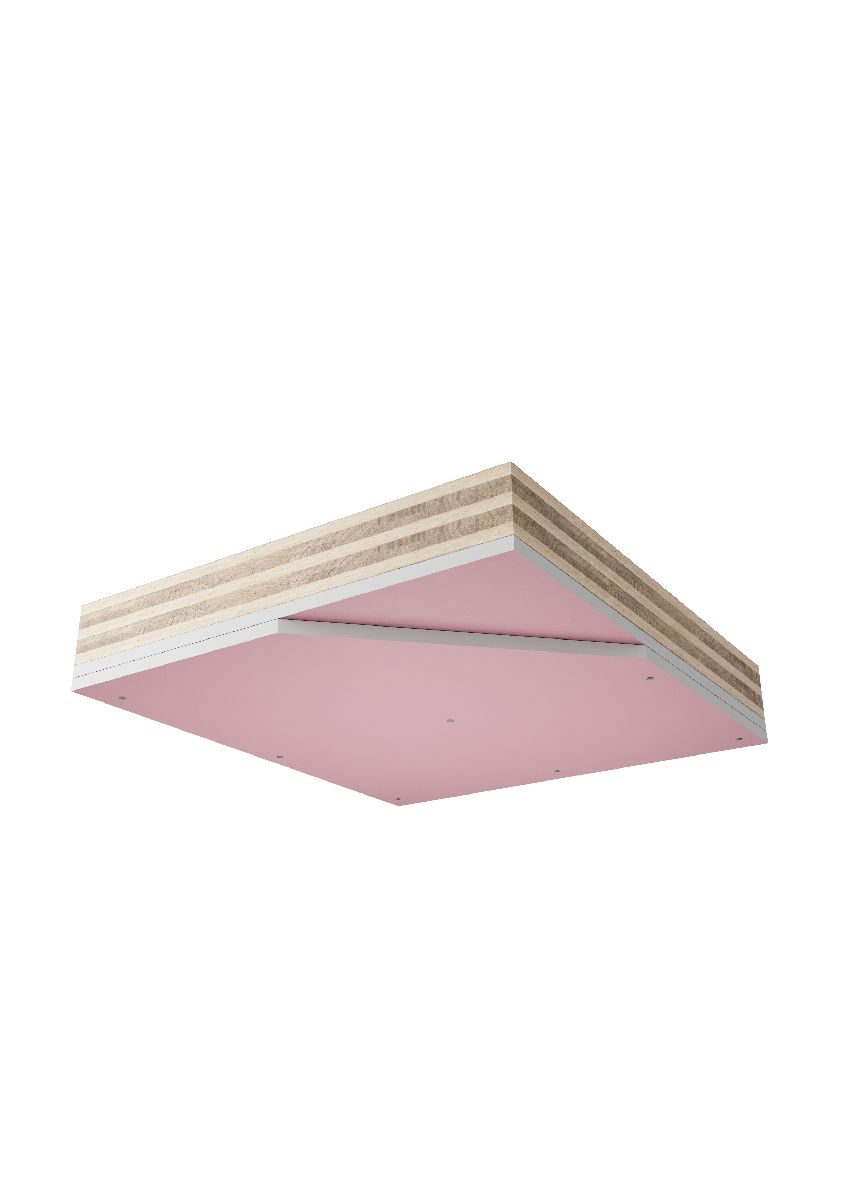

Double frame ceiling with 1 x 12,5 mm PregyFlam BA13, fixed to galvanized steel frame made of 28-28-28 mm U tracks and 27-49-27 mm S4927 channel at 75 cm spacing and at 40 cm respectively the primary and the secondary, with hangers at 100 cm. According to fire test report, only fire from below is allowed.

Pregy CDO 67/S4927 - 1 PF BA13

Further Information

Nominal thickness: 163 mm
Framing centres: 750 mm
Framing centres(2): 400 mm
Maximum hanger span: 1000 mm
Secondary channel interval: 400 mm
Fire report number: IG n. 305005/35392FR
Fire class: REI 120
Fire resistance: 120 min
Fire reaction: A2-s1,d0
Performance: Fire
Support: Masonry and concrete slab

Applications:

  • Fire resistance upgrading and fire protection of existing soffit
  • New buildings and renovations
