BEL CDO 67/S4927 - 1 Bel BA13 - GW80

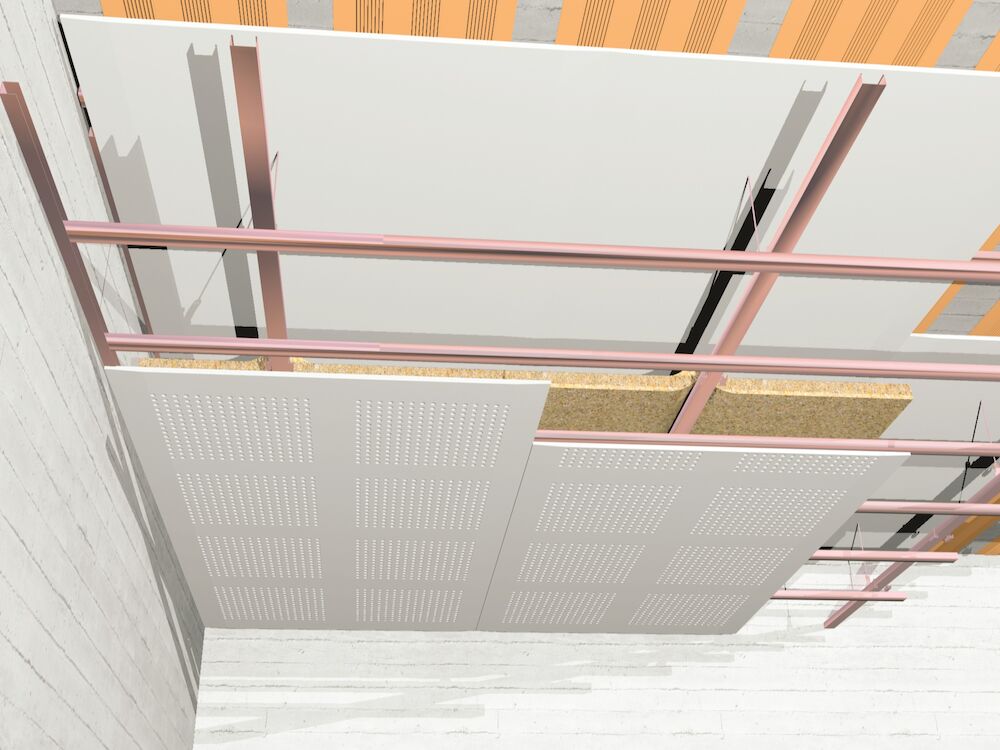

Sound absorption ceiling with 1 x 12,5 mm PregyBel board fixed to galvanized steel frame made of 28-28-28 mm U tracks and 27-49-27 mm S4927 channel at 100 cm spacing and at 40/60 cm respectively the primary and the secondary, with hangers at 120 cm. 80 mm glass wool in the cavity.

BEL CDO 67/S4927 - 1 Bel BA13 - GW80

Further Information

Nominal thickness: 67 mm
Framing centres: 600 mm
Insulation type: Glass wool
Insulation thickness: 80 mm
Insulation gross density: 20 kg/m³
weightPerSQM: 14 kg/m²
Maximum hanger span: 1200 mm
Performance: Aesthetic, Sound absorption
Support: Any kind

Applications:

  • Used to enhance the acoustic comfort of large open spaces and to control sound reverberation* Used where services are required below the soffit* New buildings and renovations
