Pregy D80/M50 - 2 PH BA15

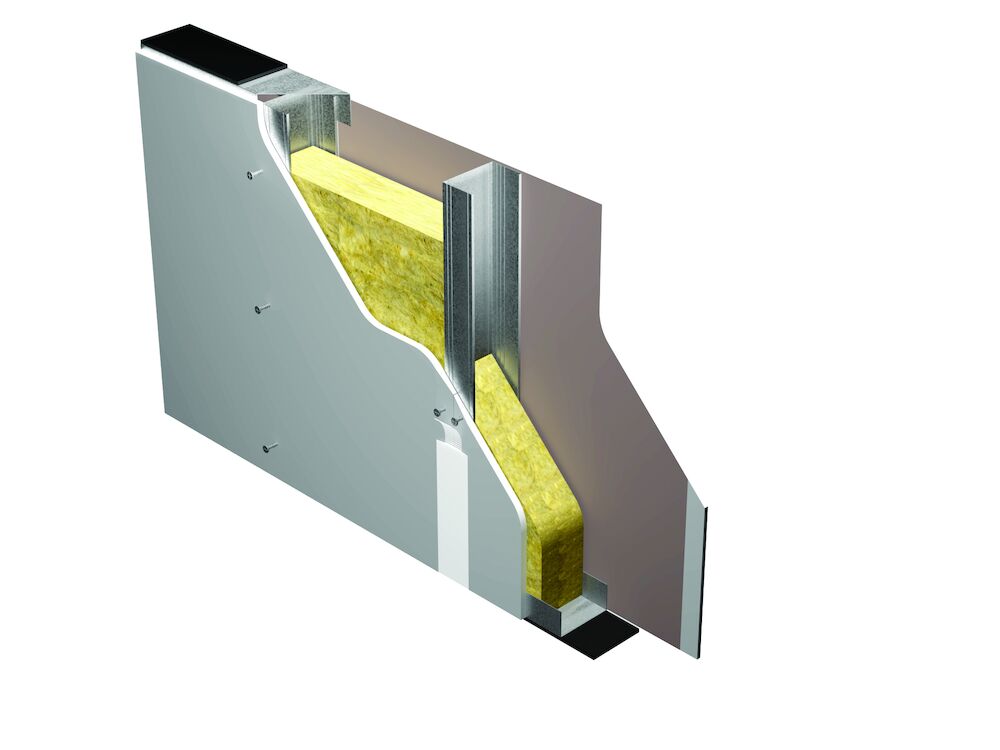

80 mm thick partition composed by 1 x 15 mm thick Pregydro H2 BA15 on each side, fixed to galvanized steel frame made of 40-50-40 mm horizontal U tracks and 47-49-50 mm vertical C studs.
Further Information
Sound insulation:
40 dB
Performance:
Moisture
Nominal thickness:
80 mm
Fire report number:
Efectis n. 05-V-151 + Ext. 06/2
Fire class:
EI 30
Fire reaction:
A2-s1,d0
Fire resistance:
30 min
Maximum height:
3600 mm
Acoustic report:
Acoustic simulation
Applications:
- Interior partitions
- New buildings and renovations
