Pregy D210/M150 - 4 FEU BA15

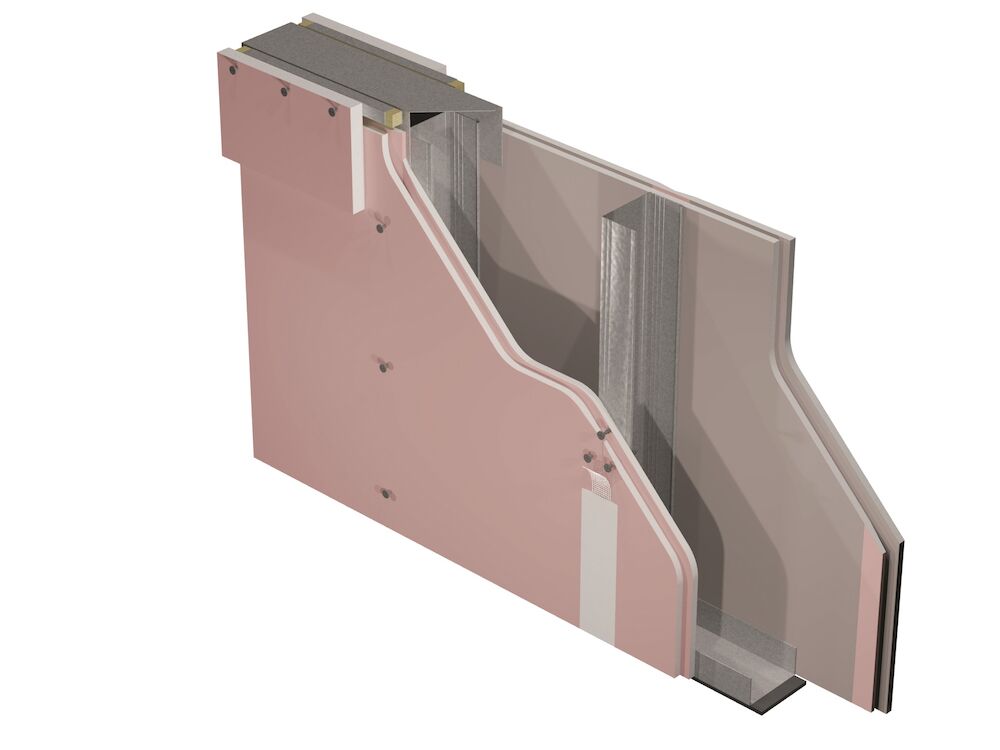

210 mm thick partition composed by 2 x 15 mm thick Pregyfeu BA15 on each side, fixed to galvanized steel frame made of 150 mm horizontal U tracks (40-150-40 mm at the bottom and 100-150-100 mm x 2 mm thick at the top) and 47-149-50 mm vertical C studs. According to fire classification report, 3 mm gap per meter height must be ensured at the top of the partition.

Further Information

Sound insulation: 49 dB
Performance: Fire, Large-sized
Nominal thickness: 210 mm
Fire report number: Efectis n. 11-G-029
Fire class: EI 180
Fire reaction: A1, non-combustible
Fire resistance: 180 min
Maximum height: 10500 mm
Acoustic report: Acoustic simulation

Applications:

  • High partitions for fire compartmentation
  • New buildings and renovations
