Pregy D147/M75 - 4 PS BA18

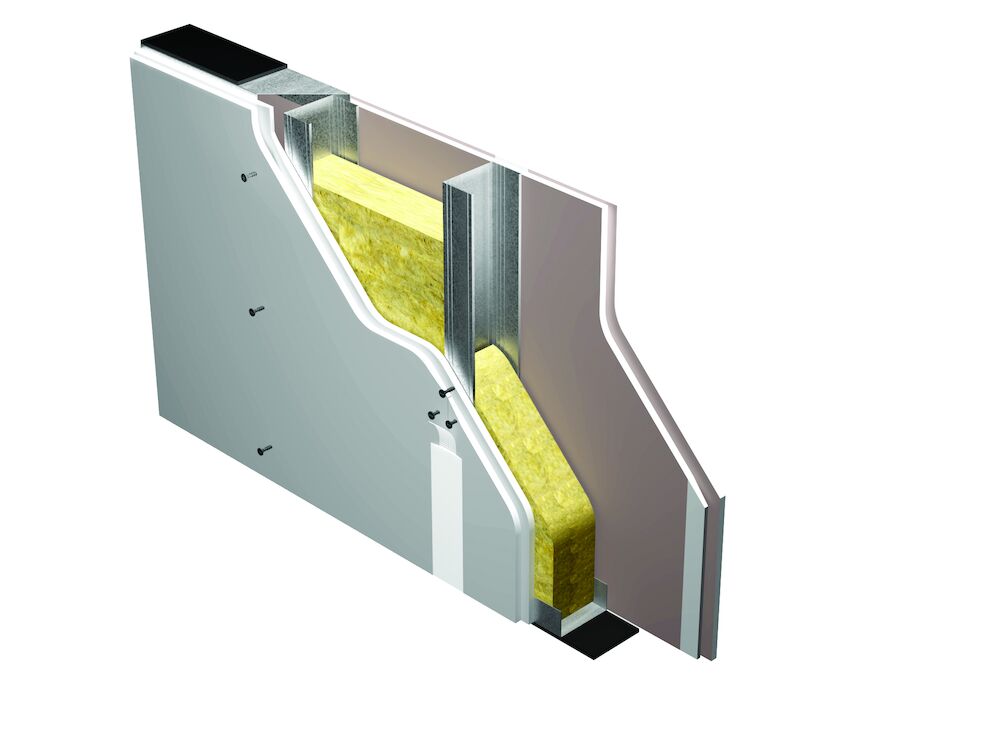

147 mm thick partition composed by 2 x 18 mm thick PregyPlac BA18 on each side, fixed to galvanized steel frame made of 40-75-40 mm horizontal U tracks and 47-74-50 mm vertical C studs. According to fire classification report, maximum height for fire rated partitions is 4,00 m.

Further Information

Sound insulation: 49 dB
Performance: Fire
Nominal thickness: 147 mm
Fire report number: IG n. 275956/3241 FR
Fire class: EI 120
Fire reaction: A2-s1,d0
Fire resistance: 120 min
Maximum height: 6500 mm
Acoustic report: Acoustic simulation

Applications:

  • Fire-rated interior partitions
  • New buildings and renovations
