Pregy D75/M50 - 2 PF BA13 - RW/40

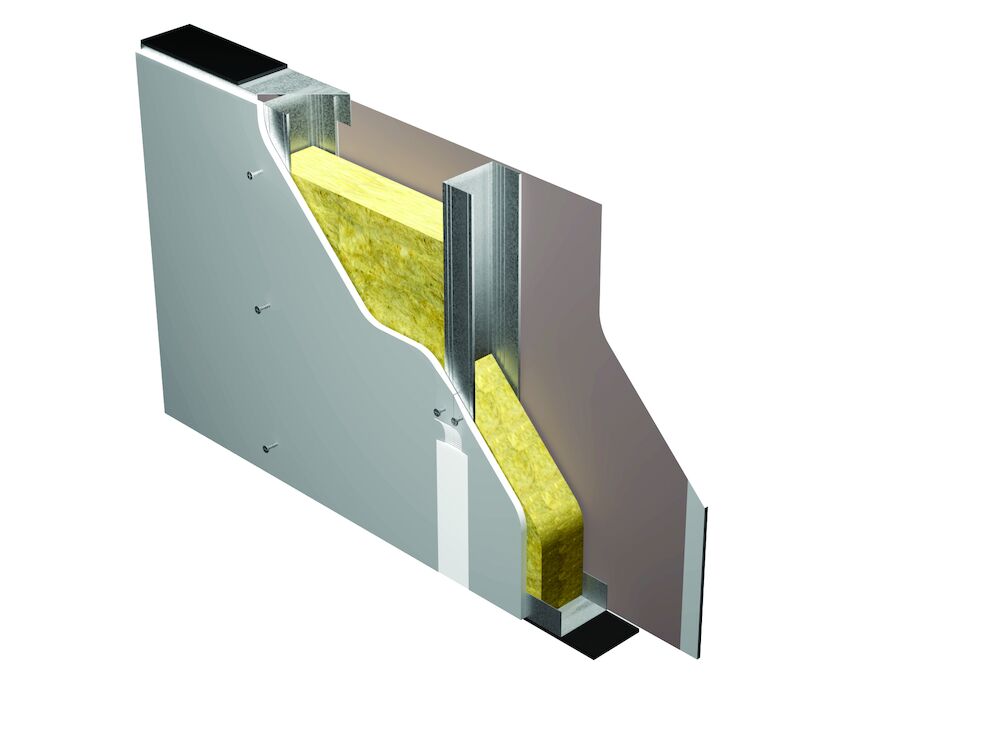

75 mm thick partition composed by 1 x 12,5 mm thick PregyFlam BA13 on each side, fixed to galvanized steel frame made of 40-50-40 mm horizontal U tracks and 47-49-50 mm vertical C studs. Rock wool 40 mm thick 110 kg/m³ in the cavity.

Pregy D75/M50 - 2 PF BA13 - RW/40

Further Information

Sound insulation: 45 dB
Performance: Fire
Nominal thickness: 75 mm
Insulation type: Rock wool
Insulation thickness: 40 mm
Insulation gross density: 110 kg/m³
Fire report number: Efectis n. 06-V-129 + Ext. 07/2
Fire class: EI 60
Fire reaction: A2-s1,d0
Fire resistance: 60 min
Maximum height: 3600 mm
Acoustic report: Acoustic simulation

Applications:

  • Fire-rated interior partitions
  • New buildings and renovations
