Pregy D125/M75 - 4 LaDura BA13

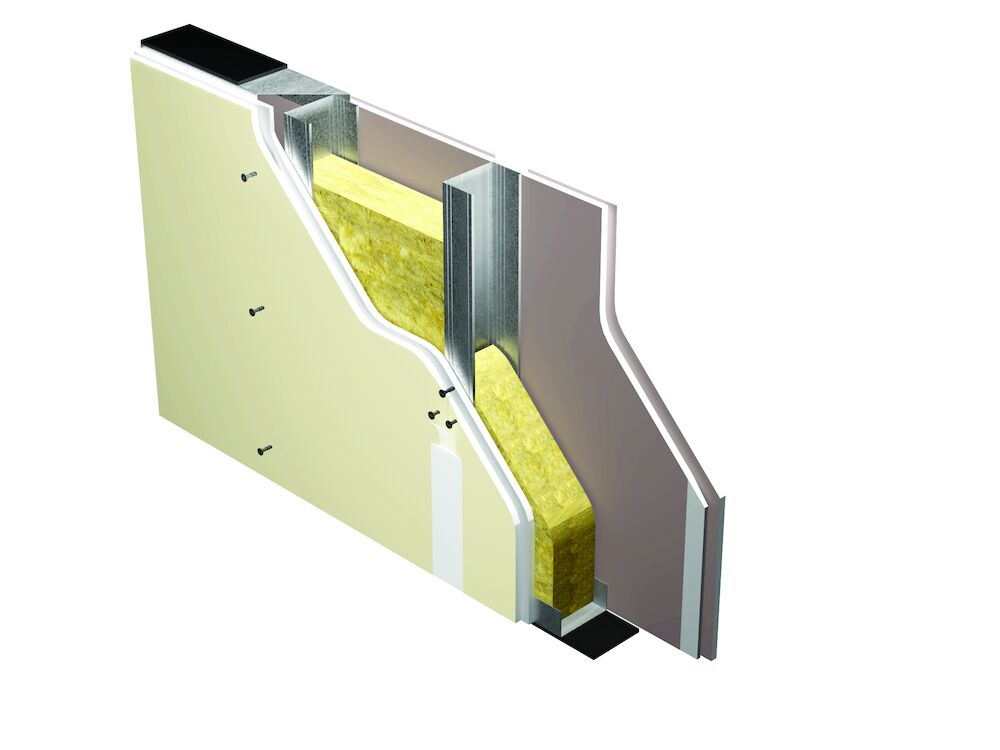

125 mm thick partition composed by 2 x 12,5 mm thick LaDura Plus BA13 on each side, fixed to galvanized steel frame made of 40-75-40 mm horizontal U tracks and 47-74-50 mm vertical C studs. According to fire classification report, maximum height for fire rated partitions is 4,00 m.

Pregy D125/M75 - 4 LaDura BA13

Further Information

Sound insulation: 51 dB
Performance: Fire, Increased load capacity, Moisture, Mechanical strength, Impact & security
Nominal thickness: 125 mm
Fire report number: IG n. 298632/3463 FR
Fire class: EI 120
Fire reaction: A2-s1,d0
Fire resistance: 120 min
Maximum height: 6600 mm
Acoustic report: Acoustic simulation

Applications:

  • Interior partitions
  • New buildings and renovations
