Pregy CW65/M50 - 1 PF BA15 - RW/50

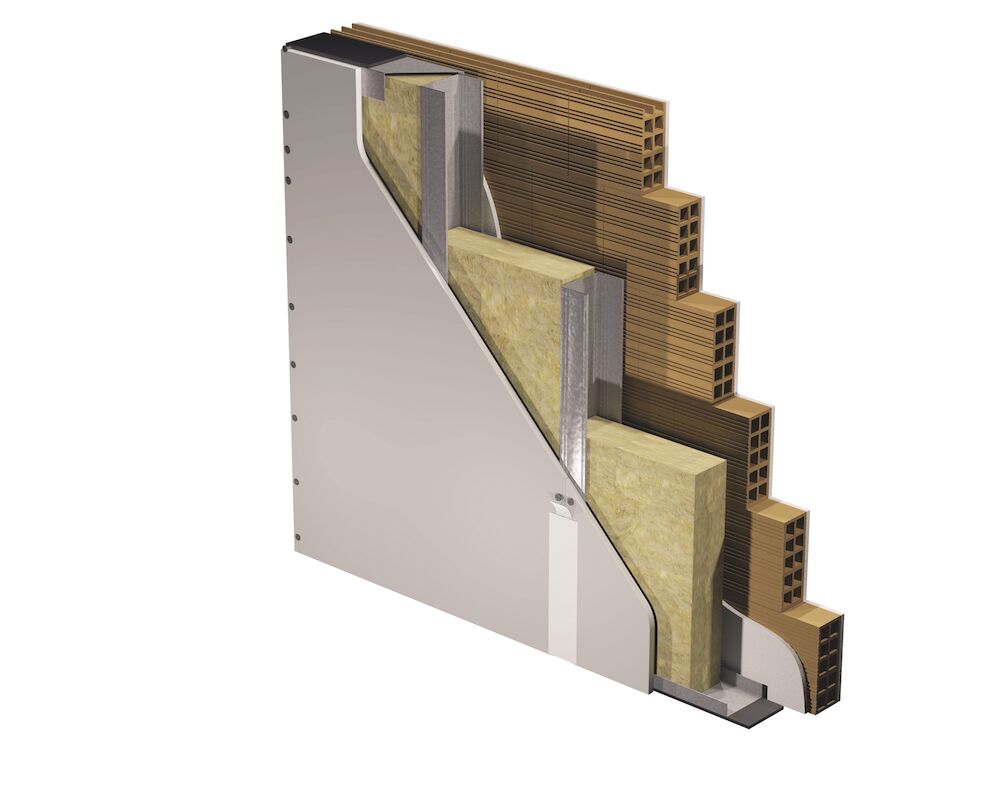

65 mm thick lining composed by 1 x 15 mm thick PregyFlam BA15, fixed to galvanized steel frame made of 40-50-40 mm horizontal U tracks and 47-49-50 mm vertical C studs. Rock wool in the cavity. According to fire test report, fire from the lining side only is allowed and maximum height is 4,00 m.

Pregy CW65/M50 - 1 PF BA15 - RW/50

Further Information

Nominal thickness: 65 mm
Insulation type: Rock wool
Insulation gross density: 40 kg/m³
Fire report number: IG n. 297101/3447 FR
Fire class: EI 120
Fire reaction: A2-s1,d0
Fire resistance: 120 min
Maximum height: 4000 mm
Support: 80 mm hollow brick wall plastered at least on the non exposed side

Applications:

  • Fire resistance upgrading of existing walls
  • Renovations
