Pregy D130/M100 - 2 PF BA15

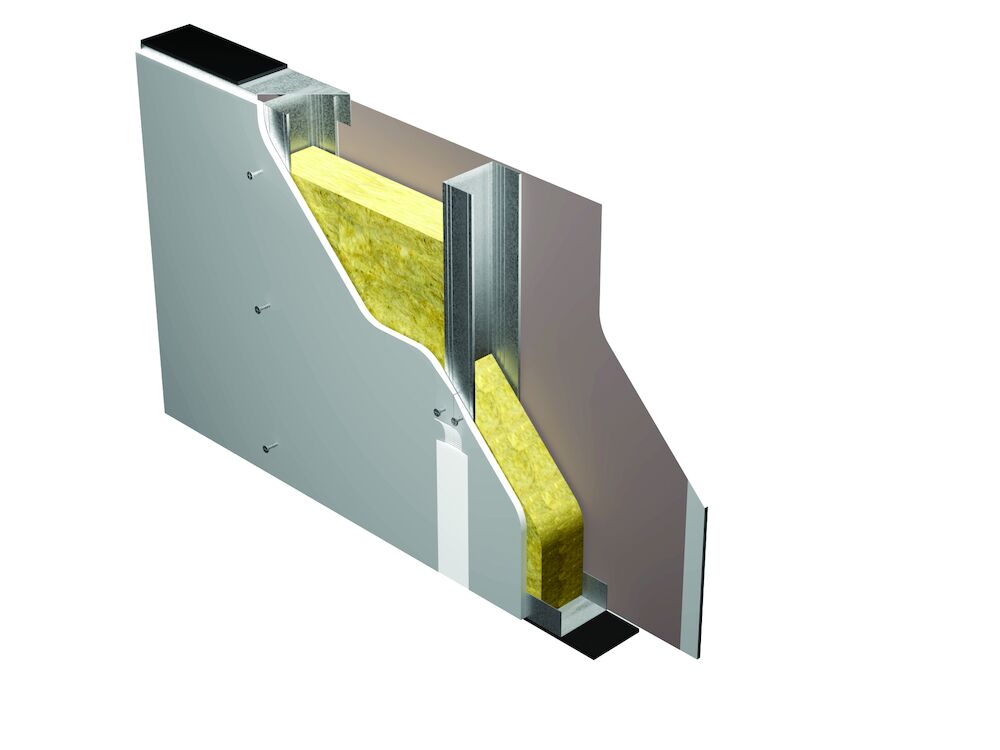

130 mm thick partition composed by 1 x 15 mm thick PregyFlam BA15 on each side, fixed to galvanized steel frame made of 40-100-40 mm horizontal U tracks and 47-99-50 mm vertical C studs.
Further Information
Nominal thickness:
130 mm
Fire report number:
Efectis n. 11-A-249
Fire class:
EI 60
Fire reaction:
A2-s1,d0
Fire resistance:
60 min
Maximum height:
7000 mm
Acoustic report:
Acoustic simulation
Sound insulation:
41 dB
Performance:
Fire
Applications:
- Fire-rated interior partitions
- New buildings and renovations
