Pregy D100/M50 - 4 PF BA13

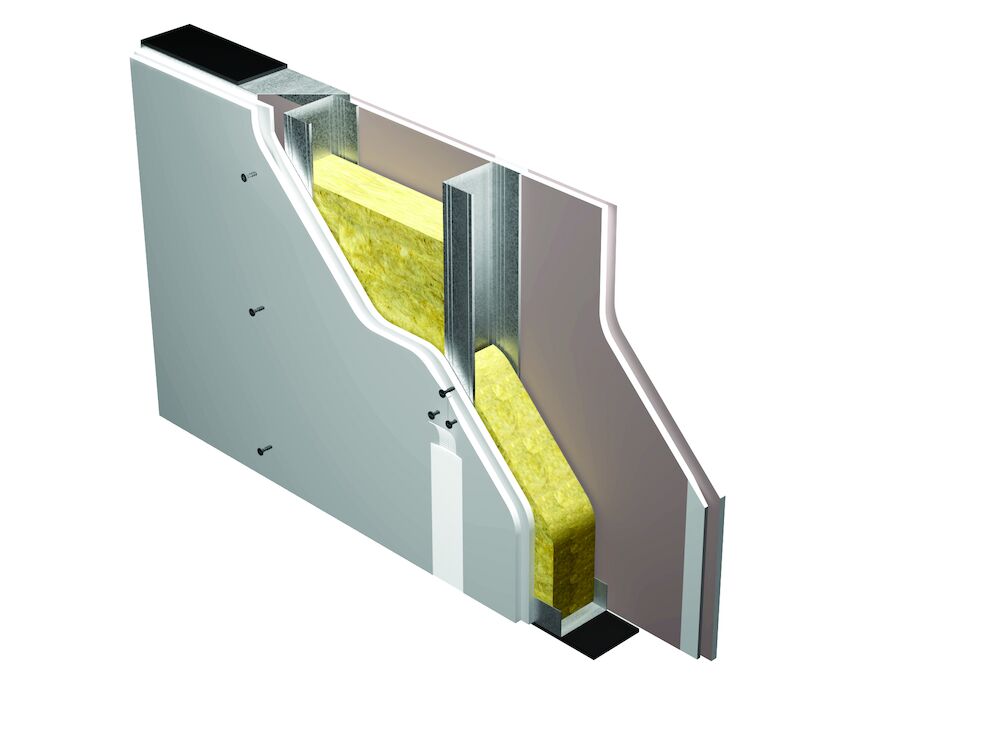

100 mm thick partition composed by 2 x 12,5 mm thick PregyFlam BA13 on each side, fixed to galvanized steel frame made of 40-50-40 mm horizontal U tracks and 47-49-50 mm vertical C studs.

Pregy D100/M50 - 4 PF BA13

Further Information

Nominal thickness: 100 mm
Fire report number: Efectis n. 09-A-015
Fire class: EI 120
Fire reaction: A2-s1,d0
Fire resistance: 120 min
Maximum height: 4250 mm
Acoustic report: Acoustic simulation
Sound insulation: 47 dB
Performance: Fire

Applications:

  • Fire-rated interior partitions
  • New buildings and renovations
