Pregy CDO 84/S4927 - 2 PF BA15

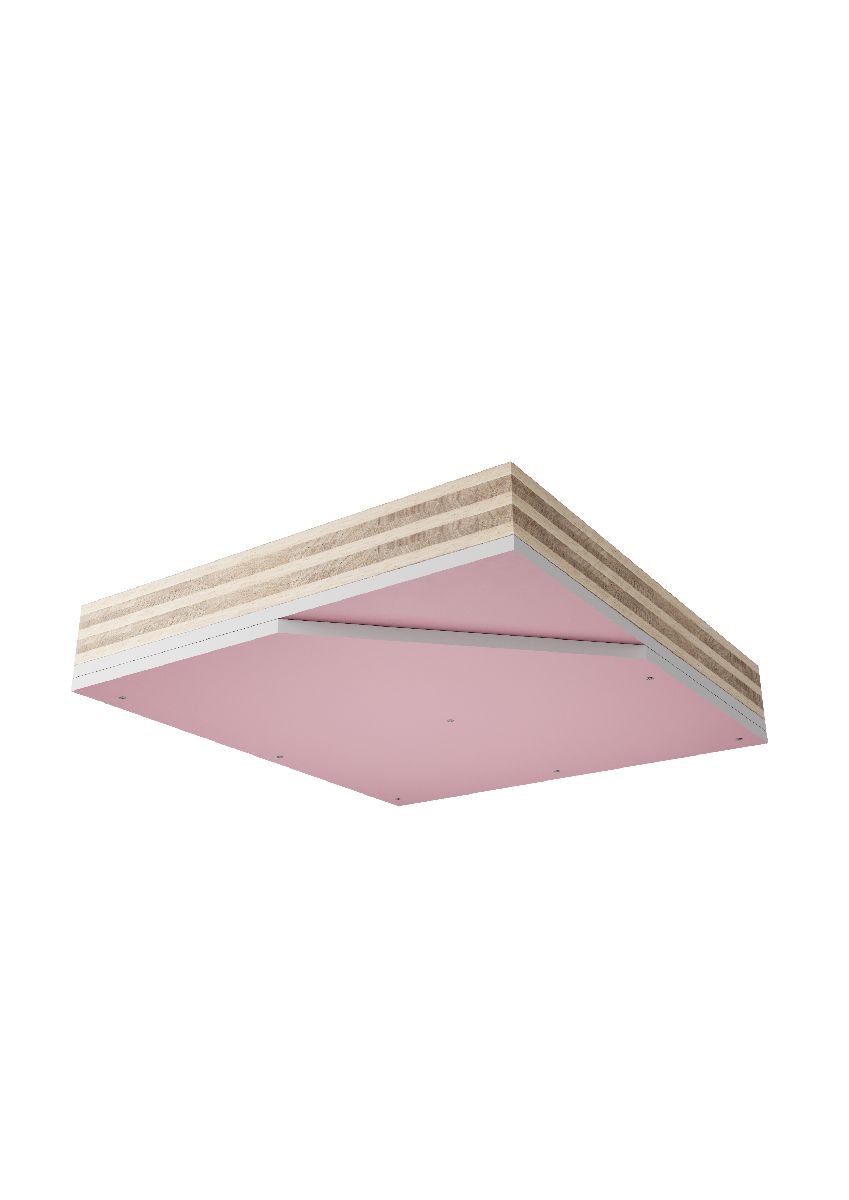

Double frame ceiling with 2 x 15 mm PregyFlam BA15, fixed to galvanized steel frame made of 28-28-28 mm U tracks and 27-49-27 mm S4927 channel at 90 cm spacing and at 40 cm respectively the primary and the secondary, with hangers at 76 cm. According to fire test report, only fire from below is allowed.

Pregy CDO 84/S4927 - 2 PF BA15

Further Information

Nominal thickness: 180 mm
Framing centres: 900 mm
Framing centres(2): 400 mm
Maximum hanger span: 760 mm
Secondary channel interval: 400 mm
Fire report number: IG n. 269134/3195FR
Fire class: REI 120
Fire resistance: 120 min
Fire reaction: A2-s1,d0
Performance: Fire
Support: Steel deck and concrete slab

Applications:

  • Fire resistance upgrading and fire protection of existing soffit
  • New buildings and renovations
