BEL CSO 40/S4927 - 1 Bel BA13 - GW80

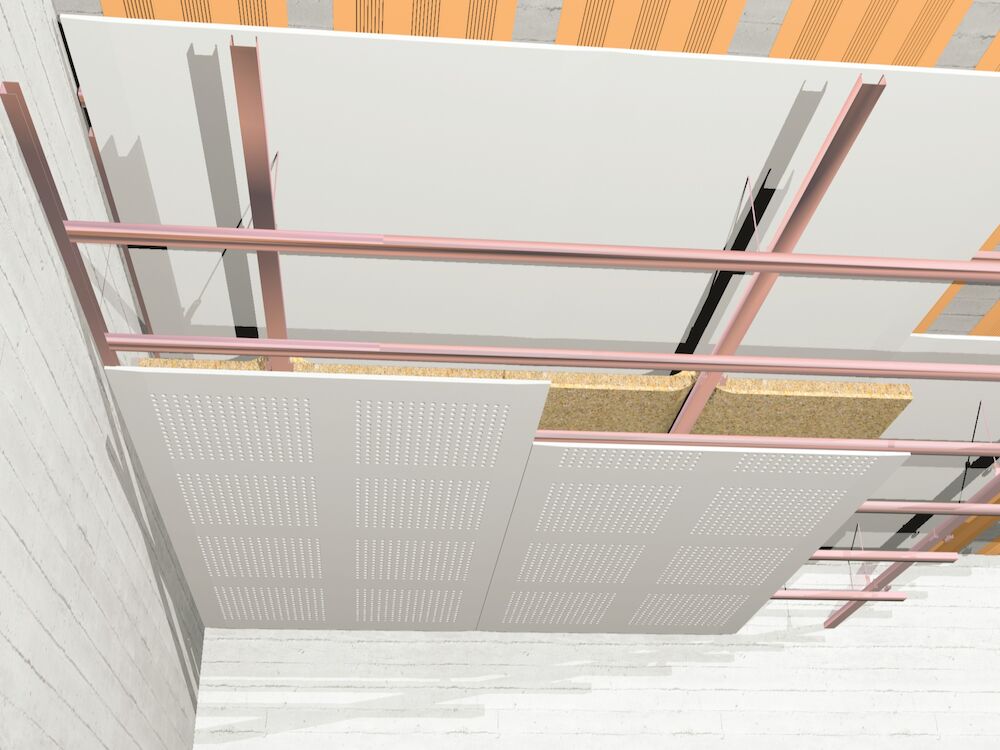

Sound absorption ceiling with 1 x 12,5 mm PregyBel board fixed to galvanized steel frame made of 28-28-28 mm U tracks and 27-49-27 mm S4927 channel at 40 or 60 cm spacing with hangers at 120 cm. 80 mm glass wool in the cavity.

Further Information

Application:

  • Used to enhance the acoustic comfort of large open spaces and to control sound reverberation* Used where services are required below the soffit* New buildings and renovations

Commercial Name: BEL CSO 40/S4927 - 1 Bel BA13 - GW80
Thickness: 40mm
Framing Centres: 600mm
Insulation Type: Glass wool
Insulation Thickness: 80mm
Insulation Density: 20kg/m³
Weight per m²: 11.5kg/m²
Maximum hanger span: 1200mm
Compatible Support: Any kind
Performance Category: Aesthetic, Sound absorption
